产品简介
DSHB, Optical DVI pigtail module extender with HDCP support, is designed to let digital flat panel displayextend over 300meters (1,000feet) away from host based on DVI standard by optical transmission technology.It can transmit EDID data and HDCP over fiber in real time. DSHB can be used with DVI device as wellas HDMI standard device such as Blu-ray player, PS-3 as well as DVI devices.
Features
• High speed and long distance transmission by 1 channel SC type multi-mode optic fiber
• Supports resolution up to HDTV / 1080p, PC / WUXGA (1920x1200)
• TMDS video signal and EDID data is transmitted over optical fiber
• HDCP Compliant
• EMC : KC Certification
技术规格
• Connector (transmitter) : DVI-D (male), SC connector (female)
• Connector (receiver) : DVI-D (male), SC connector (female)
• Optic fiber : 1ch / Multi-mode(50/125μm)
• Pixel Clock : 225MHz (single link)
• Supporting Resolution & Distance
- WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft)
- 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)
• Power Consumption (transmitter) : 1.3W (max)
• Power Consumption (receiver) : 1.1W (max)
• Power Supply (transmitter & receiver) : 100~240V DC 12V
• Dimensions : 180W x 75D x 35H (mm)
• Operating Temperature range : 0°C ~ 50°C
• Storage Temperature range : -20°C ~ 70°C

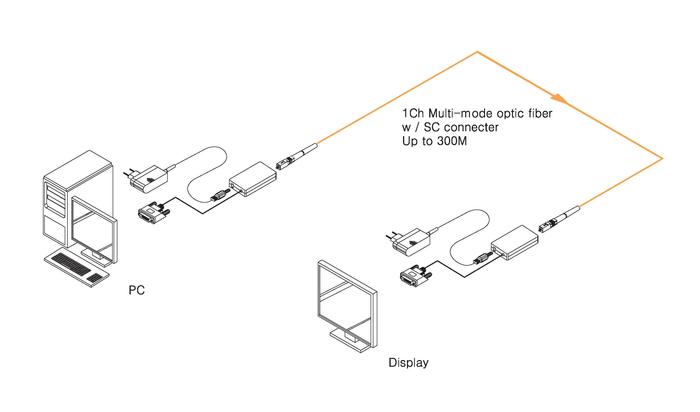

连接示意图
订购信息
Package
• Transmitter, Receiver
• 2 Power Adapter
• User’s manual
