产品简介
This fiber optic cable system let your DisplayPort compliant display device extend up to 65meters (215feet) away from host based on DisplayPort standard without signal degradation by WQXGA (2560 x 1600) resolution
Features
• Fully compatible with DisplayPort v1.1a standard by VESA
• High speed and long distance transmission over optical fiber
• The use of standard DisplayPort source-sink connector
• MMF optical fiber + copper hybrid cable structure
• Power & channel operation LED installed
• EMC & Safety : CE, FCC
技术规格
• Connector (transmitter) : DisplayPort 20pin (male)
• Connector (receiver) : DisplayPort 20pin (male)
• Optic Fiber : Copper + Optical Hybrid
• Video Bandwidth : 10.8Gbs
• Supporting Resolution & Distance
- WQXGA (2560 x 1600) @ 60Hz / 65M (215ft)
• Power Consumption (transmitter) : 0.8 (max)
• Power Consumption (receiver) : 1.05 (max)
• Dimensions
-Transmitter : 75W x 25D x 20H (mm)
-Receiver : 55W x 25D x 20H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C

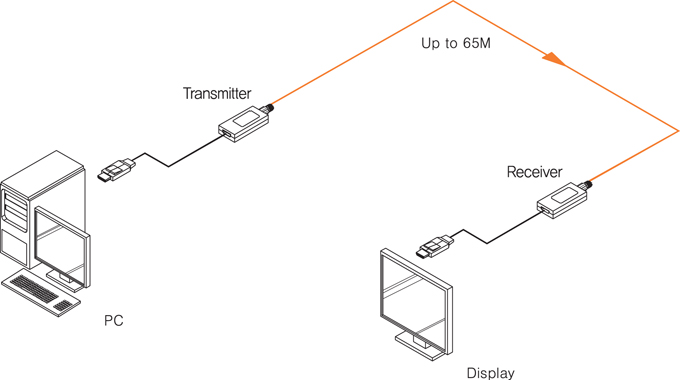

连接示意图
订购信息
Package
• DPM Cable (with 25cm Displayport Copper Cable)
• User’s manual
Ordering Information
• DPM-AXXX : DPM Cable XXX meters
